Einhell TC-SM 2534 Dual Sliding Mitre Saw

£199.99

Description

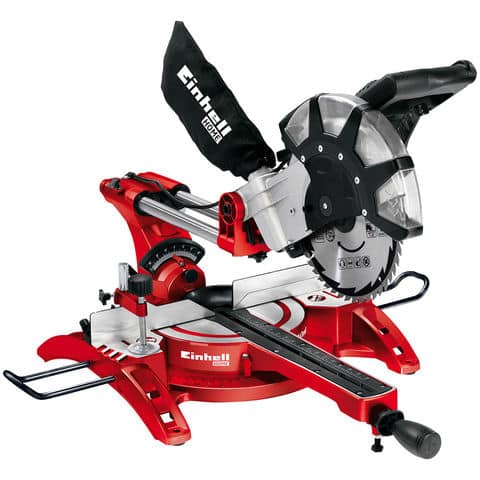

The Einhell TC-SM 2534 Dual Sliding Mitre Saw

  • Double tube-mounted drag function for wide workpieces
  • High-quality alu-turntable with exact angle adjustment + latching
  • Sawing head infinitely tiltable 0° to +45° to the left and right
  • Laser for exact indication of the cut (mains-powered)
  • 2 side extensions for longer workpieces
  • Adjustable workpiece stop with rails, left and right side
  • High-quality HW saw blade.
  • Clamping device for holding the workpiece securely in position
  • Includes sawdust bag to keep the workplace clean
  • Transport brace for safe mobility
  • With big handle on the top for easy transportation
  • Work table made of die-cast aluminium
  • All scales are visible from the working position
  • Spindle lock for easy blade change



Einhell TC-SM 2534 Information

The TC-SM 2534 Dual double bevel sliding mitre saw has a sawing head which can be tilted infinitely from 0° to +45° to the left and right for high flexibility in setting mitres on two sides in just one operation. Equipped with a carbide saw blade in professional quality it is suitable for sawing wood, laminated panels and plastics. The high-quality work table made of die-cast aluminium comes with an exact angle adjustment facility which can be latched in various positions. The double mounted drag function of the TC-SM 2534 Dual enables you to cut particularly wide workpieces. The table insert is equipped with a practical scale for reading off the workpiece width easily from the working position. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. Workpiece supports on both sides and a reliable clamping device ensure exact operation and a cutting depth control facility permits even more chhexagonging jobs to be performed with ease. The carbide-tipped saw blade offers a cutting capacity of over 200 m in particleboard and is easily changed thanks to a spindle lock. A sawdust bag keeps the workplace clean and a transport brace ensures easy and safe transportation.

Einsatzbild

Einhell TC-SM 2534 – Technical data

Mains supply 230 V | 50 Hz
Power 2100 W
Max. power (S6 | S6%) 2350 W | 25 %
Idle speed 4000 min^-1
Saw blade 250 mm x 30 mm
Number of saw teeth 48 Pieces
Mitre cut 45 ° – 45 °
Swiveling range 45 ° – 45 °
Cutting width 90° x 90° 340 mm x 75 mm
Cutting width 90° x 45° 240 mm x 75 mm
Cutting width 45° x 90° 340 mm x 42 mm
Cutting width 45° x 45° 240 mm x 42 mm
Diameter of suction adapter 36 mm
Length 795 mm
Width 575 mm
Height 460 mm
Logistical data
Product weight (kg) 14.3
Gross weight (kg) 19.15
Dimensions single packaging 795 mm x 575 mm x 460 mm
Pieces per export carton 1 Pieces
Gross weight export carton 19.15 kg
Dimensions export carton 800 mm x 575 mm x 455 mm
Container quantity (20″/40″/40″HC) 130 Pieces | 265 Pieces | 290 Pieces
