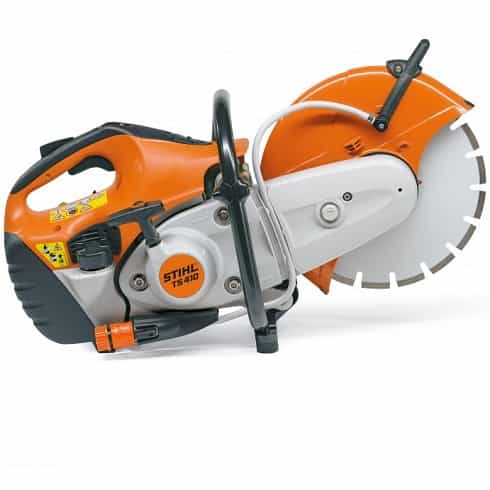

The Stihl TS410 is light and manageable yet with plenty of power at 66.7 cc. It has a 300 mm cutting wheel which will enable cuts of up to 100 mm deep. The Stihl anti-vibration system is there to ensure especially low vibration levels to help you to achieve a very precise cut. The long life air filter system is to help prevent the dust etc from entering the engine, and thanks to the decompression valve, the start up process is easier than it would be without it.
The anti-vibration system is extremely low vibration levels (3.9m/s²). The high performance engine with stratified charge system, compact design and optimised balance give the STIHL TS 410 excellent cutting and guide characteristics. The TS410 has ElastoStart, primer pump and decompression valve and is fitted with a bayonet filler cap for tool free opening.The Stihl TS410 can be hand held or used with the FW 20 cart.
Reduced-emission engine technology
2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.
Manual fuel pump (Purger)
A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.
Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
Pre-separation air filtration system
STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.
Ergonomic grip position
The modern, ergonomic design allows each user to work with an optimal grip position. The loop handle facilitates excellent cutting comfort in any working position.
Semi automatic drive belt tensioning
Light, consistent re-tensioning increases the service life of the belts and shaft bearings
Stihl TS410 Cut Off Saw Specification
|Diameter of abrasive wheel mm||300|
|Vibration levels left/right m/s²||3.9/3.9|
|Maximum cutting depth mm||100|
|Power output kW/bhp||3.2/4.4|
|Sound power level dB(A)||109.0|
|Sound pressure level dB(A)||98.0|
The Stihl TS410 cut off saw is available for collection from Masseys in Swadlincote Derbyshire.
Attachments for the TS410
There is available the FW 20 cart with attachment kit which is for cuts over long distances as well as the pressurised water contain, depth stop, wheel kit and cutting direction indicator.
